A 4-inch thick air filter isn’t just a bigger version of the standard 1-inch variety — it’s a fundamentally different approach to home air quality. The deeper media bed traps far more microscopic debris without choking your HVAC system’s airflow, meaning cleaner air and lower energy bills over the life of the filter. Yet most homeowners stick with thin fiberglass panels that let particles pass straight through.
I’m Mohammad — the founder and writer behind ProteinJug. I’ve spent countless hours comparing filter media density, electrostatic charge efficiency, and frame rigidity across dozens of brands to separate the genuinely effective filters from the marketing claims.
This guide breaks down the top contenders for your specific system, whether you’re battling seasonal allergies, wildfire smoke, or persistent pet dander. After thorough analysis, these models stand out as the most reliable 20x20x4 air filter choices for real-world HVAC compatibility and measurable particle capture.
How To Choose The Best 20x20x4 Air Filter
Selecting the right 4-inch filter involves more than matching the nominal label on your old unit. The actual dimensions, the MERV rating, and the frame construction all determine whether the filter seals properly and captures what you need without overworking your blower motor.
Actual vs. Nominal Size
Most 20x20x4 filters measure slightly smaller — typically 19.5 x 19.5 x 3.63 inches. That 0.5-inch gap on each side is intentional for sliding into a track, but cheap frames can flex and let unfiltered air bypass the media entirely. A rigid frame with dual wire backing or reinforced beverage board prevents this leak path.
MERV 13 Filtration Depth
MERV 13 captures 90% of particles in the 1.0–3.0 micron range, including smoke, bacteria, and virus carriers. On a 4-inch filter, the thicker media allows this efficiency without the drastic static pressure drop you’d see on a 1-inch MERV 13. That’s the key advantage — deeper pleats mean more surface area and lower resistance for the same capture rate.
Frame Material & Structural Integrity
Cardboard frames warp in high humidity or when the filter gets loaded with dust, creating gaps. Look for beverage-board frames (compressed paperboard) or aluminum mesh reinforcement. Dual wire backing keeps the pleats evenly spaced, preventing the media from collapsing inward under airflow suction, which would restrict the center of the filter.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| BNX TruFilter 20x20x4 | Mid-Range | All-around clean air | MERV 13, 19.5 x 19.5 x 3.63 in | Amazon |
| Filtrete 20x20x4 MERV 13 | Premium | Asthma & allergy certified | MPR 1900, actual 19.75 x 19.75 x 4.31 in | Amazon |
| Filterbuy 20x20x4 MERV 13 | Premium | Smoke & allergy defense | 3-pack, dual wire backing | Amazon |
| Simply 20x20x4 MERV 13 | Budget | Multi-pack value | 4-pack, actual 19.5 x 19.5 x 3.63 in | Amazon |
| AprilAire 213 | Mid-Range | AprilAire systems only | Self-Seal Technology, 20 x 25 x 4 in | Amazon |
In‑Depth Reviews
1. BNX TruFilter 20x20x4 MERV 13 (2-Pack)
BNX’s TruFilter hits the sweet spot between filtration depth and airflow efficiency. The electrostatically charged polypropylene media captures 98% of airborne particles including virus carriers, mold spores, and smoke without the excessive static pressure drop that makes some MERV 13 filters strain residential blowers. The slim-fit actual dimensions of 19.5 x 19.5 x 3.63 inches slide into most standard tracks without binding.
Users consistently report fewer allergy flare-ups and visibly less dust between changes. The American-made construction uses automated pleating that keeps spacing uniform across the entire media bed, which prevents the center from collapsing under suction — a common failure in cheaper pleated filters. EPA-registered facility adds an extra layer of manufacturing accountability.
The 2-pack covers a full replacement cycle for most homes, and the sturdy beverage-board frame resists warping in humid climates. Some buyers note the filter may whistle on high fan speeds if the track has excessive clearance, but that’s a system fit issue rather than a filter defect.
Why it’s great
- Electrostatic MERV 13 media with low airflow resistance
- Made in USA with rigid frame construction
- Two-pack provides practical replacement schedule
Good to know
- Slim-fit design may not fill oversized tracks completely
- Some users report whistling on high-speed fan settings

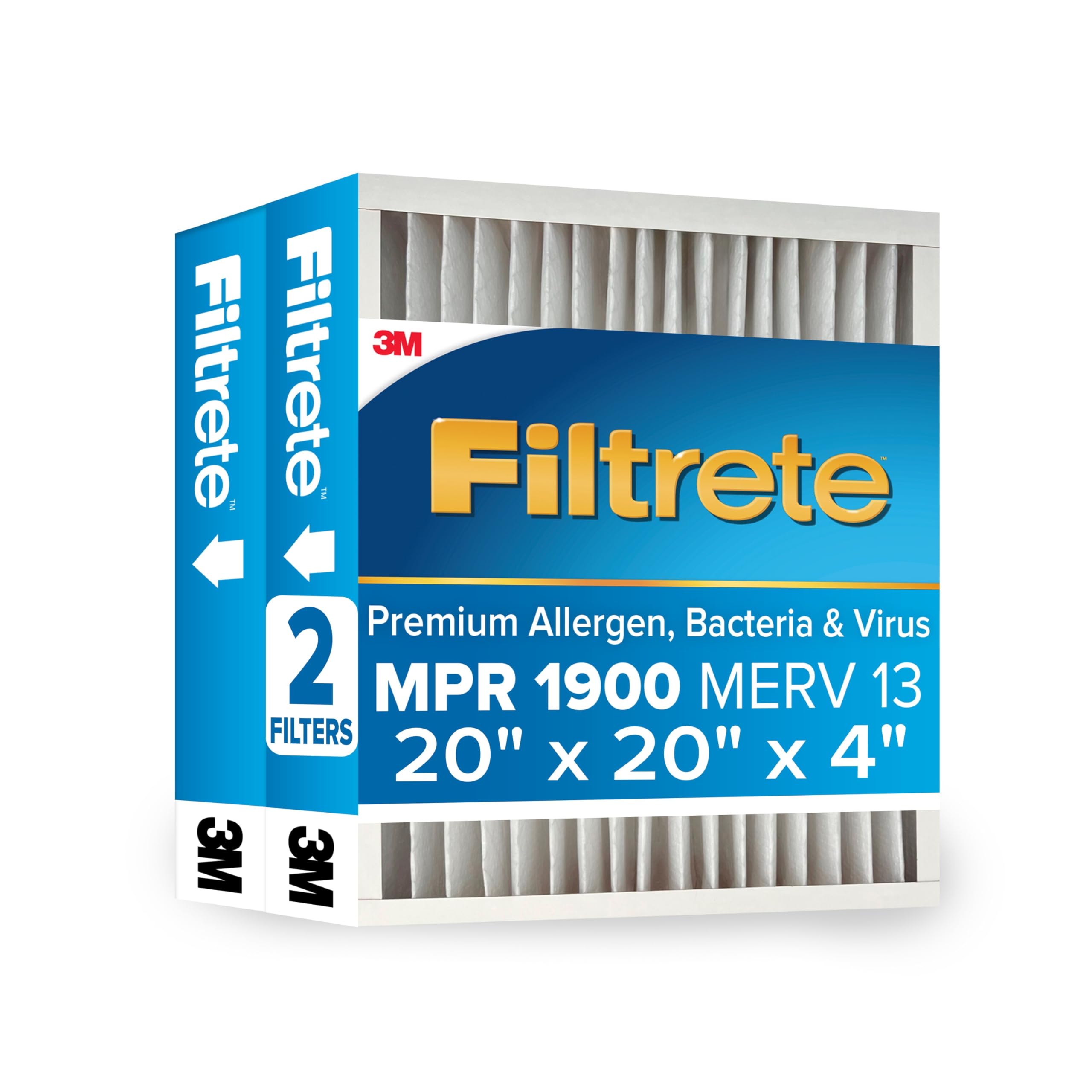

2. Filtrete 20x20x4 MERV 13 (2-Pack)
Filtrete’s 4-inch filter carries an MPR (Microparticle Performance Rating) of 1900, the highest in their 4-inch lineup, meaning it traps more bacteria- and virus-carrying particles than their MPR 1550 equivalent. The actual dimensions measure 19.75 x 19.75 x 4.31 inches, which is slightly larger than many competitors — a critical detail if your filter track is on the tighter side.
The 3-in-1 electrostatic technology pulls particles into the media rather than relying solely on surface capture, which extends the usable life of the filter. Certified asthma- and allergy-friendly by the Asthma and Allergy Foundation of America, this filter targets homes with diagnosed respiratory sensitivities. The Filtrete Smart App sends replacement reminders based on your chosen interval.
Some users report the slightly oversized dimensions cause a loose fit or wobble in tracks designed for filters that measure exactly 19.5 inches across. That gap allows unfiltered air to bypass the media, undermining the MERV rating. Check your track’s inner width before committing.
Why it’s great
- Highest MPR 1900 rating for maximum particle capture
- Asthma & allergy certified
- Smart app for replacement reminders
Good to know
- Actual size 19.75 inches may cause wobble in standard tracks
- Air bypass risk if filter doesn’t seal properly

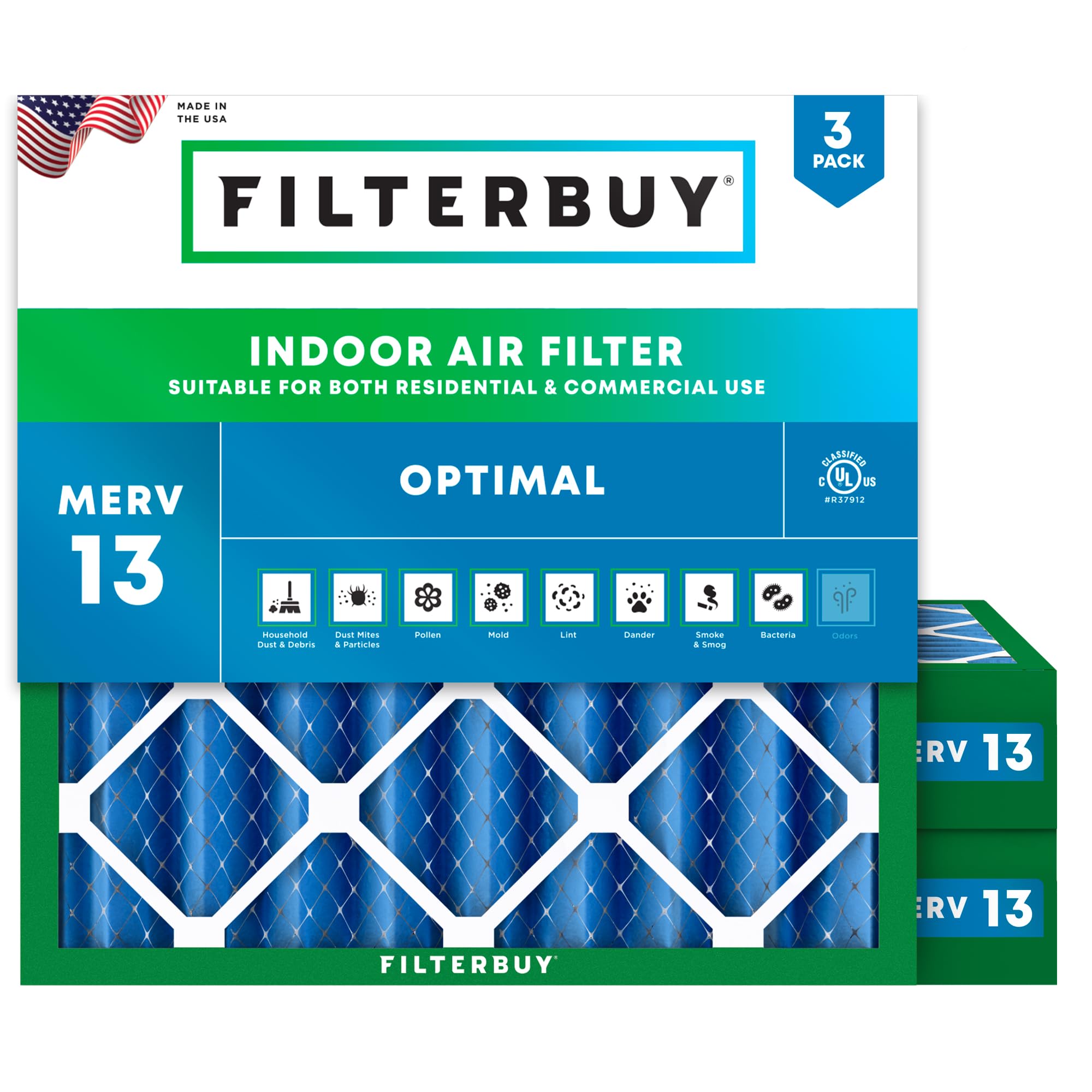

3. Filterbuy 20x20x4 MERV 13 (3-Pack)
Filterbuy packs three filters into one box, which drops the per-unit cost significantly while maintaining MERV 13 performance. The dual wire backing on each filter prevents the pleats from sagging or collapsing, even after months of continuous fan operation. The beverage-board frame resists temperature swings up to 200 degrees Fahrenheit without delaminating.
The 11 pleats-per-foot density creates more surface area than standard pleated filters, reducing air velocity through the media and improving capture efficiency without increasing static pressure. Users in wildfire-prone regions report the 3-pack covers an entire smoke season with monthly changes, and the electrostatic media visibly loads with fine brownish-orange particulate typical of smog.
Some users wish the frame used a heavier-duty material, as the beverage board can feel less premium than aluminum-reinforced alternatives. The filter is also slightly taller at 19.63 inches actual, which may require gentle compression in some tracks but generally fits standard residential return grilles.
Why it’s great
- Three-pack offers strong per-unit value
- Dual wire backing prevents pleat collapse
- 3x longer life than fiberglass models
Good to know
- Beverage-board frame less durable than reinforced aluminum
- Actual dimensions may cause tight fit in some tracks
4. Simply 20x20x4 MERV 13 (4-Pack)
The Simply 4-pack is the highest-count option at this size, making it an economical choice for homes with multiple filter grilles or aggressive replacement schedules. The pleated electrostatic media captures pet dander, dust, and smoke effectively, and users with multiple animals report noticeable improvements in air freshness between changes. The actual dimensions of 19.5 x 19.5 x 3.63 inches match the industry standard for 20x20x4 nominal filters.
Manufactured with 100% American components including recycled materials, this filter appeals to buyers prioritizing domestic sourcing. The higher pleat count compared to many retail filters provides more surface area for particle capture without choking airflow. However, some users note the MERV 13 marking isn’t printed on the filter edge or packaging, which may raise authenticity concerns for buyers who rely on visible certification.
One documented issue: the airflow resistance of these MERV 13 filters can cause some furnaces to trigger a fault state if the blower motor is undersized. The manufacturer offers no-questions-asked replacement with a lower MERV variant for affected customers, which indicates awareness of the static pressure compatibility problem.
Why it’s great
- Four-pack delivers lowest per-filter cost
- Higher pleat count for more surface area
- Made in USA with recycled materials
Good to know
- MERV 13 marking absent from packaging
- May restrict airflow in weaker HVAC systems
5. AprilAire 213 Replacement Filter (20x25x4)
AprilAire’s 213 filter is designed exclusively for AprilAire whole-house air purifiers and Space-Gard systems — it will not fit generic return grilles. The proprietary Self-Seal Technology creates a compression fit that minimizes air bypass around the filter edges, a common weak point in slide-in media filters. The 20 x 25 x 4 nominal size is specific to AprilAire models 1210, 1620, 2120, 2200, 2210, 2216, 3210, and 4200.
The MERV 13 media traps dust, pollen, mold spores, bacteria, and pet dander, and the 4-inch depth provides enough media surface area for 6-9 months of continuous use before replacement is needed. Installation is tool-free: the filter slides into the interlock rail system and the door clicks shut. The American Lung Association partnership adds credibility for buyers with respiratory concerns.
The shipping box is not reinforced for standalone shipment — multiple reviews report damaged boxes with torn corners, which risks media contamination before installation. This filter also has no compatibility outside AprilAire systems, so buyers without the matching cabinet cannot use it.
Why it’s great
- Self-Seal Technology prevents air bypass
- Long 6-9 month replacement interval
- Easy tool-free slide-in installation
Good to know
- Only fits AprilAire and Space-Gard cabinets
- Box arrives damaged in some shipments
FAQ
Can I use a MERV 13 4-inch filter in a system designed for 1-inch filters?
How often should I replace a 4-inch MERV 13 filter?
Why does my filter measure 19.5 x 19.5 when the label says 20×20?
Will a 4-inch filter reduce my HVAC airflow compared to a 1-inch?
Final Thoughts: The Verdict
For most users, the 20x20x4 air filter winner is the BNX TruFilter because it balances American-made build quality, electrostatic MERV 13 capture, and low airflow resistance at a reasonable per-filter cost. If you need asthma- and allergy-certified filtration with smart reminders, grab the Filtrete. And for multi-pack economy that handles pet dander and smoke without breaking the bank, nothing beats the Simply 4-pack.
