You bought a 4K projector for the home theater, a second monitor for the office, and a video wall for the conference room — but now you’re staring at a tangle of HDMI cables and a single source that needs to go to multiple displays. That’s the exact moment you realize a simple splitter won’t cut it. A 4K modulator does the heavy lifting: it takes one or several HDMI inputs, processes the signal, and distributes it across multiple screens in configurations like 2×2, 1×4, or even a matrix of independent sources. Without one, you’re stuck with lag, resolution drops, and cables running across the floor.
I’m Mohammad — the founder and writer behind ProteinJug. I’ve spent years analyzing AV distribution hardware, cross-referencing customer reports with spec sheets to find the units that actually deliver on their promised resolutions and connection stability.
Whether you’re building a command center, a house projection map, or a sports bar with eight screens, the right device makes the difference between a seamless show and a frozen signal. This guide breaks down the best 4k modulators on the market today — ranked by real-world performance, signal integrity, and flexibility for both residential and commercial setups.
How To Choose The Best 4K Modulator
Not every 4K modulator is built the same. Some are made for simple home theater mirroring, while others handle complex commercial matrix routing with RS-232 control. Here’s what separates the winners from the frustrating boxes that collect dust after one failed attempt.
Video Wall Mode vs. Matrix Mode
This is the most overlooked spec in the category. A video wall controller takes one source and splits it across multiple screens in a grid (2×2, 1×4, etc.) — it treats the screens as one big canvas. A matrix switch lets you route any source to any display independently. Some units, like the OREI 4×4 Seamless HDMI Matrix Switch, do both, but often with limitations: screen flip and bezel compensation may only work in video wall mode. If you need to send different content to different screens simultaneously, you need a true matrix, not just a wall controller.
Signal Distance and Cable Type
4K signals degrade fast over standard HDMI copper cables past about 15 feet. For longer runs — think projectors in ceiling mounts or displays across a conference room — you need an extender. HDBaseT units (like the OREI 4K Wall Plate Extender) send 4K@60Hz up to 230 feet over a single Cat6 cable and often include Power over Cable (PoC) to reduce clutter. Over IP extenders (like the OREI 4K HDMI Over IP) go even further, up to 330+ feet through a network switch, supporting one-to-many distribution. If you’re routing through walls or across buildings, don’t bother with a standard HDMI box.
Control and Integration
For a home theater, IR remote and front-panel buttons are fine. For a church, sports bar, or control room, you’ll want RS-232, LAN, or web GUI control. The MT-VIKI 8×8 Matrix offers a full web interface and RS-232, making it easy to integrate with existing automation systems. Cheaper units often hide critical functions (like screen flip or EDID adjustment) behind obscure software or missing cables — check the fine print before buying.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| MT-VIKI 8×8 HDMI Matrix | Matrix Switch | Commercial video routing | 8×8 matrix, Web GUI, RS-232, 4K@30Hz | Amazon |
| OREI 4K Wall Plate Extender | HDBaseT | Long-distance 4K runs | 4K@60Hz, 230 ft via Cat6, PoC | Amazon |
| OREI 4K@120Hz Extender | HDBaseT 2.0 | Gaming / high-refresh 4K | 4K@120Hz, 400 ft, VRR, ALLM | Amazon |
| OREI 4K Over IP | Over IP | Multi-building distribution | 4K@60Hz, 330 ft via network switch | Amazon |
| OREI 4K Wall Controller 2×2 | Video Wall | Simple 2×2 or 1×4 video walls | 2×2, 1×4, USB-C input, bezel adjust | Amazon |
| OREI 4×4 Seamless Matrix | Matrix + Wall | Dual-mode matrix/video wall | 4×4 matrix, 2×2 wall, RS-232 | Amazon |
| OREI 8K Audio Extractor | Switcher+Extractor | AV receiver integration | 4×1 switcher, eARC, 48Gbps | Amazon |
| SiliconDust HDHomeRun Flex 4K | TV Tuner | OTA broadcast distribution | ATSC 3.0, 4 tuners, network DVR | Amazon |
In‑Depth Reviews
1. MT-VIKI 4K HDMI Matrix Switch 8X8
The MT-VIKI HD88L is a professional-grade 8×8 HDMI matrix that routes any of eight inputs to any of eight outputs independently — or mirrors a single source across all displays. It supports 4K@30Hz with 3D and deep color, and includes a 3.5mm audio extraction port on OUT8 for feeding external speakers. The rack-mountable 1U chassis fits standard 19-inch racks, making it a natural fit for conference rooms, churches, bars, and control centers.
What sets it apart is the control flexibility: front panel buttons with confirmation beeps, IR remote, RS-232, LAN, and a web GUI. The web interface is straightforward — no terminal commands or proprietary software required. Customers report easy setup with multiple video feeds in church sound booths and man caves running eight TVs plus a projector. The unit handles manual switching and scene programming reliably.
One nuance: the matrix forces high-res sources to scale down to the lowest display’s native resolution, which can frustrate users with mixed 1080p/4K screens. Audio extraction only works through OUT8, so plan your routing accordingly. For a pure commercial 4K matrix under heavy multiscreen demands, this is a robust, well-supported option.
Why it’s great
- Full 8×8 matrix with independent source routing
- Web GUI, RS-232, LAN, and IR control options
- Solid rack-mount build quality with lit buttons
Good to know
- Scales all outputs to the lowest display’s resolution
- Audio extraction limited to OUT8 only
2. OREI 4K Wall Plate HDBaseT HDMI Extender
If you need a clean, flush-mounted solution for sending 4K@60Hz across a room — or across a building — the OREI UHD-WPE230-K is the best wall plate extender in this lineup. It transmits video up to 230 feet over a single Cat6 or Cat7 cable with full HDMI 2.0, HDCP 2.2, and HDR support. Power over Cable (PoC) means only the receiver needs a wall plug; the transmitter gets power from the Ethernet cable, reducing clutter behind the source.
The two-way IR control lets you operate source devices from the display location — a must for projectors mounted on a conference room ceiling or a TV in a separate zone. Customers report flawless performance in boardrooms with 4K sources at 75 feet, and the metal wall plate design looks professional. The kit includes IR blaster and receiver, plus Phoenix connectors for the transmitter’s IR input.
Be aware that the receiver gets noticeably warm during extended use. Also, the unit is picky about Ethernet cable quality — a standard flat Cat6 may cause instability at 50+ feet; shielded Cat7 is recommended for longer runs. It’s not compatible with other OREI HDBaseT models or third-party units, so buy the pair as a set.
Why it’s great
- Clean wall plate form factor with flush installation
- Power over Cable reduces wiring
- Two-way IR control for remote source operation
Good to know
- Receiver runs hot during use
- Requires quality shielded Cat6/Cat7 for stable long runs

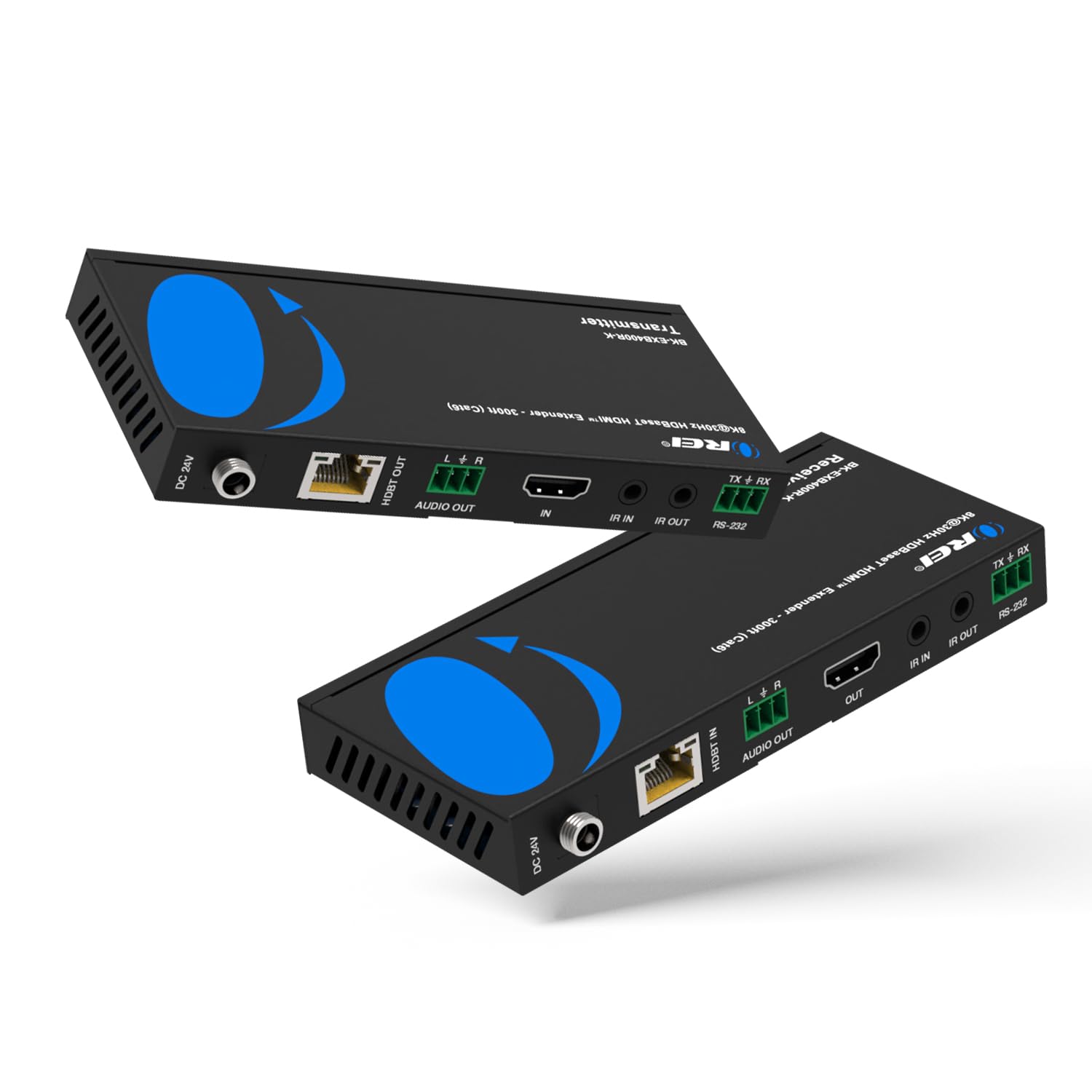

3. OREI 4K @ 120Hz HDMI Over Ethernet Extender
For gamers or anyone needing high-refresh 4K over long distances, the OREI BK-EXB400R-K delivers uncompressed 4K@120Hz with VRR, ALLM, and HDR10+ support — all over a single Cat6/7 cable up to 400 feet. It supports HDMI 2.1 with 40 Gbps FRL bandwidth, making it one of the few extenders that can handle a PS5 or high-end PC at full 4K 120fps without latency or compression artifacts.
Customers confirm zero-lag 4K HDR gaming over 100-foot Cat8 cables, with HDMI 2.1 passthrough for surround sound. The PoC feature means only one power adapter is needed at either end. The unit also includes RS-232 for professional AV integration and bi-directional IR for remote control from either location.
There is a catch: a few users report intermittent connection drops after extended use (around one hour), possibly related to heat or memory. It’s also on the pricier side, but for uncompromised high-refresh 4K gaming at distance, nothing else here matches its spec sheet.
Why it’s great
- Uncompressed 4K@120Hz with VRR and ALLM
- 400-foot range with PoC
- HDMI 2.1 40 Gbps bandwidth
Good to know
- Some units lose connection after ~1 hour of use
- Requires high-quality HDMI 2.1 cables at source and display
4. OREI 4K HDMI Extender Over IP CAT6
When one-to-many distribution is the goal — sending the same 4K feed to multiple displays across different rooms or floors — the OREI UHD-EXM500-K is the solution. It extends 4K@60Hz up to 330 feet over a single Cat6 cable and supports point-to-point or one-to-many setups by connecting multiple receivers through a standard gigabit network switch.
Setup is truly plug-and-play: no drivers or configuration software required. The transmitter includes an HDMI loop-out for local monitoring, which is useful for verifying the source signal before distribution. Customers report reliable 1080p and 4K extension over 300 feet, with the ability to send HDMI across a network via multiple switches and fiber. The IR control passes from receiver to transmitter, enabling remote source control.
A major limitation: this unit does not support HDR. Customers also report issues with 4K HDR and Dolby Atmos passthrough — Xbox and Blu-ray players may lock to 30Hz with 2.0 stereo audio. For pure 4K SDR distribution across a building, it’s a solid workhorse; for HDR content, look elsewhere.
Why it’s great
- One-to-many distribution via network switch
- True plug-and-play operation
- HDMI loop-out for local source monitoring
Good to know
- No HDR support
- 4K HDR/Atmos passthrough unreliable
5. OREI 4K Video Wall Controller for Multi-Screen Display
The OREI HD-22VW is a dedicated 2×2 video wall controller that takes one HDMI or USB-C source and splits it across four screens in configurations like 2×2, 1×2, 2×1, 1×3, 3×1, 1×4, and 1×4 splitter mode. It supports 4K@60Hz input with 1080p output per display, includes bezel adjustment and 180-degree rotation, and offers separate optical and analog audio extraction.
Customers report seamless performance with 30-foot-wide projection mapping setups using three projectors, with no visible lines or lag. The unit is praised for its straightforward plug-and-play installation — no complex networking or RS-232 programming required. The IR remote and front-panel buttons make on-the-fly mode switching easy.
Note that the USB-C input is convenient for modern laptops, but the unit only outputs 1080p per screen, so you’re not getting full 4K to each display. It also lacks RS-232 or network control, making it less suitable for commercial installations that need automation. For a simple, affordable 2×2 or 1×4 video wall in a home theater or retail setting, it’s a fantastic value.
Why it’s great
- Multiple video wall modes including 2×2 and 1×4
- USB-C input for modern laptops
- Bezel adjustment and 180-degree rotation
Good to know
- Only 1080p output per display
- No RS-232 or network control
6. OREI 4K 4×4 Seamless HDMI Matrix Switch
The OREI HDS-404VW is a dual-purpose unit that functions both as a 4×4 HDMI matrix (routing four sources to four displays independently) and a 2×2 video wall controller. It supports nine display modes including 2×2, 1×2, 2×1, 1×3, 3×1, 1×4, 4×1, and splitter mode — all at 1080p per display in wall mode or 4K@30Hz per display in matrix mode.
Control options include front panel buttons, IR remote, and RS-232 (cable not included). The device includes advanced EDID management and supports audio formats like Dolby TrueHD and DTS-HD Master Audio passthrough. Customers appreciate the seamless switching and reliable performance, with one user calling it “well worth the cost” after a straightforward installation.
There are important caveats: screen flip (image mirror) only works in video wall mode and requires RS-232 with terminal commands — it’s not plug-and-play. The unit also clamps blacks slightly in video wall mode, and the front-panel buttons emit a loud, persistent beep. For users who need a true matrix with video wall capability at a moderate budget, it’s a solid performer if you’re willing to navigate the RS-232 quirks.
Why it’s great
- Dual-mode: 4×4 matrix and 2×2 video wall
- Nine display modes with advanced EDID management
- Dolby TrueHD and DTS-HD Master Audio passthrough
Good to know
- Screen flip only works in wall mode via RS-232 terminal
- Loud button beep, blacks slightly clamped in wall mode

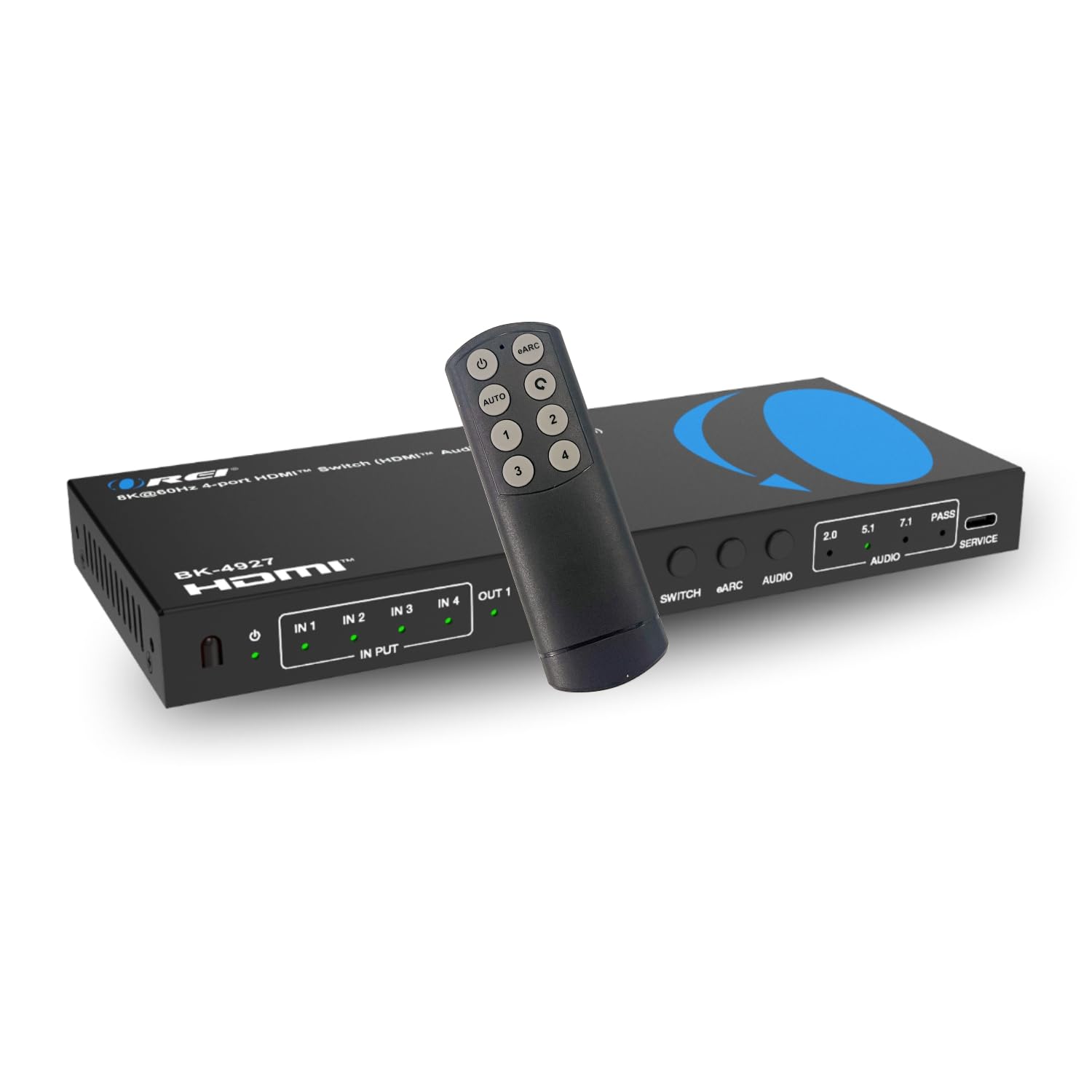

7. OREI 8K 4-Port HDMI Audio Extractor Switch
This unit is a 4×1 HDMI switcher with eARC audio extraction, designed primarily for home theater setups where a modern source (like Apple TV 4K or PS5) needs to feed a 4K projector while sending audio to an older AV receiver without eARC. It supports HDMI 2.1 with 48Gbps bandwidth, 4K@120Hz, 8K@60Hz, Dolby Vision, HDR10+, and Dolby Atmos passthrough.
Users report successful setups with Roku, PC towers, and HDMI cables feeding projectors while routing sound to separate stereo systems. The eARC mode extracts audio from the TV’s eARC port and sends it as HDMI audio to a non-ARC receiver — a niche but critical feature for legacy AV gear. The dedicated HDMI audio output ensures full-bandwidth surround formats.
One limitation: the eARC extraction is designed for AV receivers with HDMI inputs, not eARC soundbars — compatibility is narrower than the label suggests. Also, some users find the remote control conflicts with other IR devices, causing unintended mode changes. For users modernizing a projector-based theater with an older receiver, this is a targeted, high-bandwidth solution.
Why it’s great
- 48Gbps HDMI 2.1 with 4K@120Hz passthrough
- Dedicated eARC to HDMI audio conversion
- Optical and L/R analog audio outputs included
Good to know
- eARC mode not compatible with soundbars
- Remote control may conflict with other IR devices
8. SiliconDust HDHomeRun Flex 4K ATSC 3.0
The HDHomeRun Flex 4K (HDFX-4K) is a network-based TV tuner that receives ATSC 3.0 (NextGen TV) and ATSC 1.0 broadcasts and streams them over your home network to multiple devices simultaneously. It features four tuners — two dedicated to ATSC 3.0 and all four capable of ATSC 1.0 — with whole-home DVR capability via a USB hard drive (no subscription required, though a /year guide service is optional).
Customers consistently praise the hardware’s excellent picture quality and channel detection, even with temporary indoor antennas. The tuner pulls in channels from 37 miles away and delivers uncompressed video identical to a direct antenna feed. The HDHomeRun Config GUI is a useful tool for antenna aiming. With a decent router, channel changes are fast and reliable.
The software side is the main weakness. The Roku app is notoriously buggy — frequent crashes, non-functional fast-forward/rewind, and channel icons disappearing. The Android/Google TV app works better but was plagued by connection discovery issues in early firmware. Recent firmware updates have improved stability, but Roku users should plan on using a separate streaming box like an Onn Android TV device. ATSC 3.0 DRM-protected channels (like NBC in some markets) are not compatible with all devices, so check local broadcaster encryption.
Why it’s great
- Uncompressed OTA picture quality, superior to Tablo and Fire TV Recast
- Four tuners (2 ATSC 3.0) with whole-home DVR
- Excellent hardware reliability and signal detection
Good to know
- Roku app is unstable; use Android/Google TV or a separate box
- ATSC 3.0 DRM-protected channels may be incompatible on some platforms
FAQ
Can I use a 4K modulator to send different pictures to each screen in a video wall?
What is the maximum cable length for a 4K@60Hz signal without an extender?
Does a 4K modulator affect input lag for gaming?
Final Thoughts: The Verdict
For most users, the best 4k modulators winner is the MT-VIKI 8×8 HDMI Matrix because it combines professional-grade 8×8 routing, web GUI control, and solid build quality at a mid-range price point — ideal for conference rooms, churches, and serious home theaters. If you need long-distance 4K@60Hz extension with a clean wall plate look, grab the OREI 4K Wall Plate HDBaseT Extender. And for uncompromised 4K@120Hz gaming across the house, nothing beats the OREI 4K@120Hz HDMI Over Ethernet Extender.
