Your HVAC system’s efficiency hinges on a single cardboard-and-media rectangle that most homeowners treat as an afterthought. Swap the wrong 16x24x1 filter into your return vent, and you invite either restricted airflow that strains your blower motor or gaps that let dust cascade straight through. The balance between particle capture and pressure drop defines every worthwhile choice in this category.
I’m Mohammad — the founder and writer behind ProteinJug. I’ve spent hundreds of hours deconstructing MERV ratings, pleat counts, and media density specs to separate honest filtration performance from marketing fluff in the residential air filter market.
Whether you are battling seasonal allergies, protecting a new furnace, or just want less dust on your shelves, finding the right best air filter 16x24x1 means matching your home’s specific trade-off between air cleanliness and system static pressure.
How To Choose The Best Air Filter 16x24x1
Every 16x24x1 filter lives inside a system that expects a specific static pressure. Cram a dense MERV 13 pleated filter into a unit designed for MERV 6, and you risk frozen coils, short-cycling, or blower failure. Start with your equipment’s manual — it lists the maximum MERV rating your furnace or AC can handle. From there, choose the filter that hits that ceiling without exceeding it.
Understand MERV, MPR, and FPR Scales
MERV (Minimum Efficiency Reporting Value) is the industry standard. A MERV 5 catches lint and dust mites; MERV 8 traps 90% of pollen and mold spores; MERV 13 captures smoke and bacteria-sized particles. MPR (Filtrete’s proprietary scale) and FPR (Honeywell’s scale) roughly correlate — MPR 300 equals MERV 5, MPR 600 to MERV 8, MPR 1900 to MERV 13. Never trust a filter claiming MERV 13 with a flimsy cardboard frame — the media density demands a rigid, wire-reinforced build to avoid collapsing under air velocity.
Check the Actual Dimensions
Nominal 16x24x1 filters measure roughly 15.75 x 23.75 x 0.75 inches, but variances of 0.2 to 0.5 inches are common across brands. A filter that is too small creates bypass gaps where unfiltered air circulates around the media. A filter that is too large may buckle when you force it into the slot. Measure your existing filter’s exact length, width, and thickness with a tape measure before ordering. The product data in this guide includes actual dimensions for each model so you can match your slot precisely.
Pleat Density and Frame Construction
Standard pleated filters use 14 to 24 pleats per foot. Higher pleat count increases surface area, which reduces airflow resistance for a given MERV rating — a good thing. But the frame matters more. Beverage-board frames (recycled paperboard) are fine for MERV 8 and below. For MERV 11 and above, look for double-wire backing or hot-rolled steel mesh frames that prevent warping in humid environments or under high fan speeds. A warped frame creates air gaps that defeat the entire purpose of filtration.
Change Interval and Real-World Lifespan
Manufacturers advertise 90-day lifespans, but actual duration depends on your home’s dust load, pet count, and run hours. A household with two shedding dogs and a 2,500-square-foot home running the fan 12 hours daily will clog a MERV 8 filter in 45 to 60 days. Fiberglass MERV 3 filters can last three months in the same environment because their open structure passes larger particles. Buy multi-packs — six filters per purchase is the standard sweet spot for 16x24x1 — so you always have a fresh unit when the pressure drop tells you it’s time.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Filterbuy MERV 8 4-Pack | Pleated | Allergy defense + strong airflow | MERV 8, 14 pleats/ft, double wire | Amazon |
| Simply Filters MERV 8 6-Pack | Pleated | High pleat count for longer life | MERV 8, 24 pleats/ft, steel mesh | Amazon |
| Filtrete MERV 5 6-Pack | Pleated | Budget-friendly basic dust capture | MERV 5, MPR 300, 3-month life | Amazon |
| Glasfloss Fiberglass 6-Pack | Fiberglass | Max airflow in restrictive systems | MERV 3, double strut frame, no metal | Amazon |
| Chenzhit MERV 13 6-Pack | Pleated | Smoke, bacteria & allergen capture | MERV 13, MPR 1900, FPR 10 | Amazon |
In‑Depth Reviews
1. Filterbuy 16x24x1 Air Filter MERV 8, 4-Pack
Filterbuy hits the MERV 8 sweet spot that balances 90% particle capture with minimal static pressure increase. The dual-wire backing prevents the media from bowing inward under continuous fan operation, keeping the seal tight against the filter slot. At an actual size of 15.38 x 23.38 x 0.75 inches, these filters slide into most residential return vents without the stubborn force-fit that bends frames.
The electrostatic media in this 4-pack is rated for 90-day use, but real-world feedback from Florida and Texas homeowners confirms they hold their shape and filtration performance through 60 to 90 days of constant AC run time. The aluminum and polypropylene frame resists warping in humid environments — a common failure point for all-cardboard frames. Users consistently report a noticeable drop in visible dust settling on furniture within two weeks of switching.
Each filter carries a MERV 8 rating that compares with MPR 700 and FPR 5, making it a universal drop-in replacement for anyone whose HVAC manual allows MERV 8 or higher. The 4-pack format provides a one-year supply for most households that change filters every three months, and the sturdy shipping box prevents edge damage during transit — a detail many cheaper multi-packs ignore.
Why it’s great
- Dual-wire backing prevents frame collapse under high airflow
- Electrostatic media captures 90% of airborne particles without restricting system airflow
- Sturdy packaging eliminates warped or bent filters on arrival
Good to know
- Actual dimensions run slightly smaller than Filtrete’s nominal size — measure your slot first
- 4-pack may be insufficient for homes that change filters every 60 days

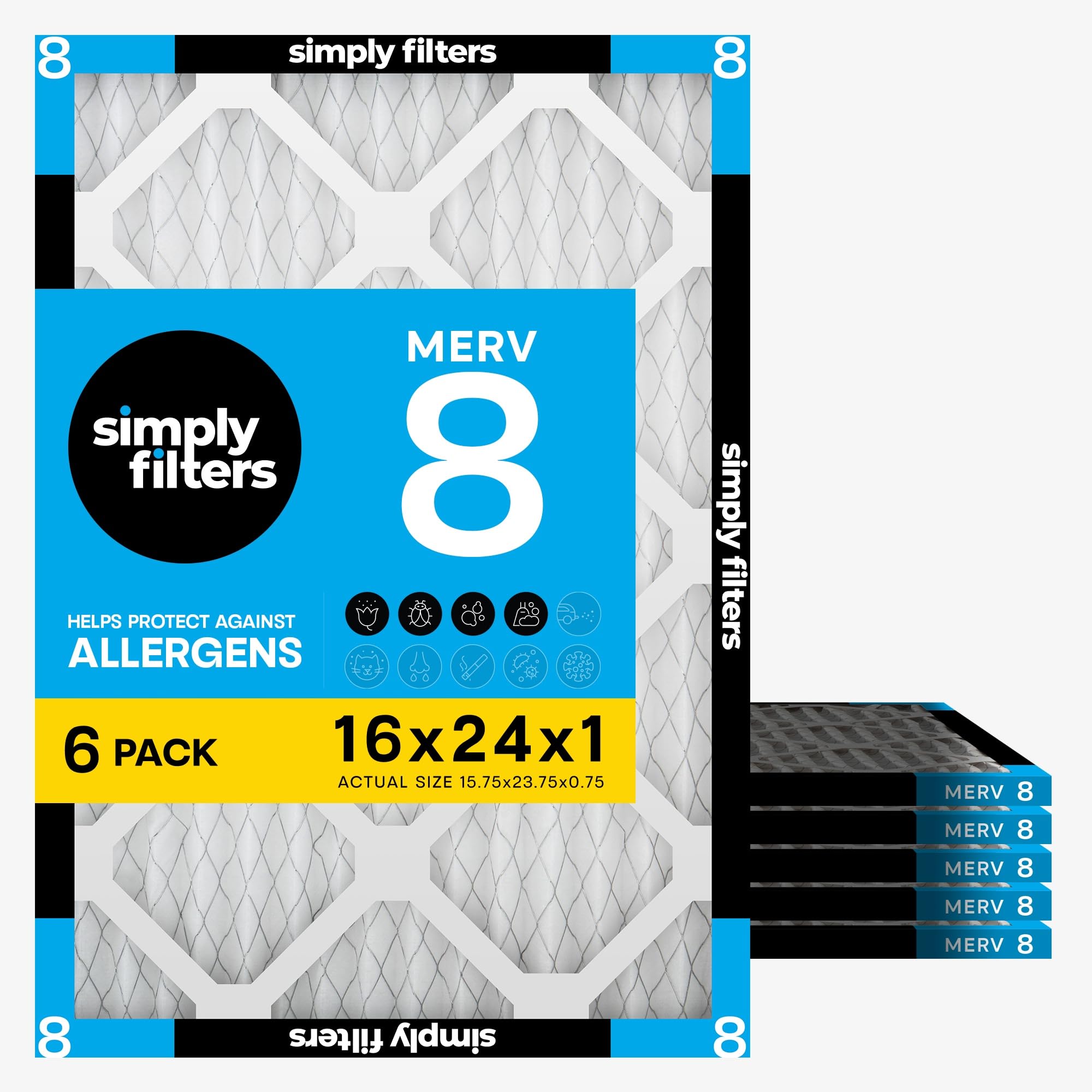

2. Simply 16x24x1 Air Filter, MERV 8, 6-Pack
Simply Filters distinguishes itself with a pleat density of 24 pleats per foot — significantly higher than the industry-standard 14. This increased surface area reduces face velocity through each pleat, which lowers the pressure drop for a given MERV 8 rating and extends the filter’s dust-holding capacity before clogging. The hot-rolled steel wire mesh embedded in the 24-point beverage board frame keeps the pleats evenly spaced even after months of use.
At an actual dimension of 15.75 x 23.75 x 0.75 inches, this filter is 0.37 inches wider and 0.37 inches taller than the Filterbuy offering — a meaningful difference if your filter slot is on the tighter side. The 6-pack configuration aligns well with a twice-a-year change schedule, giving you a full 18-month supply if you replace every 90 days. Owners of homes with multiple pets report that the higher pleat count captures more dander between changes without the filter loading unevenly.
The MERV 8 media captures 90% of particles sized 3 to 10 microns, including dust, pollen, mold spores, and pet dander. It is manufactured entirely with American components and includes recycled material in the frame construction. The inclusion of an installation guide with arrows printed directly on the frame eliminates the common mistake of installing the filter backwards.
Why it’s great
- 24 pleats per foot maximizes surface area and extends filter life before replacement is needed
- Steel wire mesh backing prevents media collapse in high-velocity systems
- 6-pack offers excellent value per filter for consistent inventory
Good to know
- Not ideal for systems with very tight filter slots — the 15.75 width may require slight compression
- MERV 8 is not sufficient for smoke or bacteria-level filtration
3. Filtrete 16x24x1 Air Filter MERV 5, 6-Pack
Filtrete’s MERV 5 filter is the lowest friction option in the pleated category — ideal for older HVAC systems, oil furnaces, or heat pumps that cannot tolerate the static pressure of higher MERV ratings. The pleated construction still outperforms basic fiberglass panels by capturing lint, dust mites, and larger household debris that would otherwise recirculate. The wire-reinforced frame keeps the pleats rigid even when the filter is partially loaded with dust.
At an actual size of 15.81 x 23.81 x 0.81 inches, these filters are fractionally taller and thicker than the rest of the field — a detail that matters in slots with zero clearance. The 6-pack is priced competitively with big-box store single filters, making it a logical choice for landlords, rental properties, or homeowners who want to stock up without over-investing in filtration. Users in Florida running AC nonstop report the filters last a full 90 days with no noticeable loss of airflow.
The Filtrete Smart App compatibility lets you set 30-, 60-, or 90-day reminders on your phone, though the filter itself has no embedded electronics — it is strictly a calendar-based reminder tool. The MPR 300 rating corresponds to MERV 5, meaning this filter removes about 58% of particles in the 3-10 micron range. That is adequate for basic dust control but insufficient for allergy or asthma management.
Why it’s great
- Lowest pressure drop among pleated 16x24x1 filters — ideal for sensitive HVAC equipment
- Wire-reinforced pleats maintain structure in humid climates
- 6-pack provides over a year of supply with 3-month change intervals
Good to know
- MERV 5 does not capture mold spores, pollen, or pet dander — only basic dust and lint
- Actual dimensions slightly larger than most competitors — verify your slot clearance
4. Glasfloss 16x24x1 Fiberglass Air Filter, 6-Pack
Glasfloss GDS Series filters are the correct answer when your technician explicitly tells you to stop using high-MERV pleated filters. The fiberglass media provides maximum open area — roughly 10% greater than comparable fiberglass panels — which translates to the lowest possible pressure drop across the filter face. For heat pumps that lock out due to high head pressure or older furnaces with undersized ductwork, this filter prevents the system from tripping safety limits.
Constructed with a heavy-duty one-piece craft board frame and a double-strut design, these filters have zero metal parts — no sharp edges during installation and no risk of rust corrosion inside the filter slot. The actual size of 15 5/8 x 23 5/8 x 3/4 inches (15.625 x 23.625 x 0.75) is among the smallest in actual dimensions, so it fits easily in slots that other filters require forcible compression to enter. Users who switched from pleated filters to this fiberglass model report immediate resolution of short-cycling and frozen coil issues.
MERV 3 is a low rating, capturing only about 50% of particles larger than 10 microns — primarily lint and coarse dust. These filters are not designed for indoor air quality improvement; they are designed for equipment protection. For homeowners with clean outdoor air who simply need to protect the blower motor and evaporator coil from debris buildup, the Glasfloss fiberglass option is a reliable, disposable solution.
Why it’s great
- Lowest airflow resistance of any 16x24x1 filter — prevents HVAC lockout and short-cycling
- Double-strut frame with no sharp metal edges for safe, quick installation
- 10% more open area than standard fiberglass panels for unrestricted air movement
Good to know
- MERV 3 captures nowhere near enough particles for allergy or asthma relief
- Fiberglass media may release fiber particles during initial airflow — not ideal for occupied spaces
5. Chenzhit MERV 13 16x24x1 Air Filter, 6-Pack
Chenzhit’s MERV 13 filter targets the highest level of residential particulate capture — trapping 90% of particles in the 0.3 to 1.0 micron range, including smoke, bacteria, and most airborne viruses. The MPR 1900 and FPR 10 equivalents place this squarely in the premium filtration tier, suitable for homes with wildfire smoke, severe allergies, or immuno-compromised residents. The pleated media is noticeably denser than MERV 8 filters, so it generates substantially higher static pressure.
At an actual size of 15.75 x 23.75 x 0.75 inches, the Chenzhit matches the dimensions of the Simply Filters unit, ensuring a snug fit without excessive compression. The frame construction uses a reinforced paper media with what users describe as better-than-expected rigidity — no buckling reports even in systems running at continuous fan speed. Early reviewers highlight the filter’s ability to noticeably reduce visible dust accumulation and improve allergy symptoms within the first week of installation.
The 6-pack is the highest-priced set in this roundup due to the denser media and tighter tolerances. However, the cost per filter remains well below buying single MERV 13 filters from hardware chain stores. Note that MERV 13 filters require more frequent replacement — every 60 days during high-use seasons, and as often as 30 days during peak summer or winter months when your HVAC system runs continuously. This filter is not compatible with systems that specify MERV 8 or lower as the maximum rating in their manual.
Why it’s great
- MERV 13 captures smoke, bacteria, and sub-micron particles that lower MERV filters miss entirely
- Fits snugly without gaps when installed in correctly sized return slots
- 6-pack pricing beats big-box single-filter costs for premium MERV 13 media
Good to know
- Do not use in systems that specify maximum MERV 8 or lower — risk of airflow restriction
- Requires more frequent changes (30-60 days in high-use seasons) than MERV 5 or 8 filters
FAQ
Can I use a MERV 13 filter in any 16x24x1 slot?
Why does my 16x24x1 filter measure smaller than 16x24x1?
How often should I replace a 16x24x1 air filter?
Final Thoughts: The Verdict
For most users, the best air filter 16x24x1 winner is the Filterbuy MERV 8 4-Pack because it combines the ideal MERV 8 particle capture with dual-wire frame rigidity that resists warping in real-world HVAC conditions. If you want more media surface area for longer filter life, grab the Simply Filters MERV 8 6-Pack with its 24-pleat-per-foot design. And for protecting a sensitive or older HVAC system against airflow restrictions, nothing beats the Glasfloss Fiberglass MERV 3 for keeping your equipment running safely.
