A MERV 13 air filter is the thin line between your lungs and the microscopic debris floating through your home. But slap the wrong one into your return vent, and you trade clean air for a choked HVAC system that strains, whistles, and shortens its own lifespan. The right MERV 13 filter captures 98% of airborne particles—pollen, smoke, mold spores, bacteria—without creating a dam inside your ductwork. The trick is matching the spec sheet to your system’s static pressure tolerance, not just grabbing the thickest pleats on the shelf.
I’m Mohammad — the founder and writer behind ProteinJug. This guide comes from spending countless hours cross-referencing ASHRAE test standards, electrostatic media construction, and real-user feedback across hundreds of MERV 13 filter units to separate the airflow-friendly designs from the restrictors that cause short-cycling furnaces.
Every filter reviewed here was analyzed for its actual measured dimensions, frame rigidity, pleat density, and particle-capture efficiency so you can confidently choose the right best air filter merv 13 for your home without second-guessing compatibility or performance trade-offs.
How To Choose The Best Air Filter MERV 13
MERV 13 is a filtration sweet spot — it traps particles as small as 0.3 microns (virus carriers, smoke, bacteria) without the extreme airflow resistance of MERV 14–16 that can overload residential blowers. But not all MERV 13 filters behave the same way. Three variables define real-world performance: dimensional accuracy, media construction, and frame rigidity.
Actual Dimensions vs. Nominal Size
A filter labeled “16x25x1” almost never measures exactly 16 by 25 inches. Nominal sizing leaves room for the filter to slide into the track without jamming at the edges. The actual size is typically ¼ to ⅜ inch smaller on each side — for example, 15.68 x 24.68 inches. Filters that deviate too far from standard actual sizes will either rattle in the slot (bypass leakage) or require force to insert (frame buckling). Always compare actual dimensions against your existing filter before buying a multi-pack.
Electrostatic Media vs. Standard Pleated
Electrostatically charged synthetic media uses static electricity to attract particles onto the filter fibers, similar to a magnet pulling iron shavings. This increases capture efficiency without needing denser, more restrictive material. Standard pleated filters achieve MERV 13 solely through mechanical density — which means tighter weaves that can choke airflow. Electrostatic designs (like the BNX and Filterbuy models) maintain lower static pressure drops while still hitting the MERV 13 standard.
Frame Construction and Seal Quality
Fiberboard frames with single-sided tape fail in high-humidity basements or near furnace heat exchangers. The best MERV 13 filters use moisture-resistant beverage board (coated cardboard) or polypropylene frames with full-perimeter bonding. Wire backing — a metal mesh laminated to the media — prevents the pleats from collapsing under suction loads, which is essential for larger filters (20×20 and above) where surface area creates significant pull force at the center of the panel.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| BNX TruFilter 16x25x1 | Premium | Allergy & particle reduction with low airflow resistance | Electrostatic charged media, 15.68″ x 24.68″ actual | Amazon |
| Filterbuy 16x20x1 | Premium | Long-lasting smoke & allergen defense | 16 pleats per foot, 15.50″ x 19.50″ actual | Amazon |
| Simply 20x20x1 | Mid-Range | Large return grilles with heavy debris load | Wire-backed synthetic media, actual 19.75″ x 19.75″ | Amazon |
| Maycold 12x12x1 | Mid-Range | Compact furnace slots & tight-fit installs | Actual 11.70″ x 11.70″ x 0.75″, individually wrapped | Amazon |
| Chenzhit 12x12x1 (6-Pack) | Budget | Frequent swaps for high-particulate environments | Actual 11.75″ x 11.75″ x 0.75″, paper frame | Amazon |
In‑Depth Reviews
1. BNX TruFilter 16x25x1 Air Filter MERV 13 (4-Pack)
The BNX TruFilter is the closest you can get to a “fire and forget” MERV 13 filter. Its electrostatically charged polypropylene media captures up to 98% of airborne particles — including virus carriers, bacteria, and mold spores — while maintaining industry-leading low airflow resistance, a claim backed by ASHRAE Standard 52.2-2017 testing. The actual dimensions of 15.68 x 24.68 inches fall within the standard tolerance for 16x25x1 slots, so you get a snug seal without having to force the frame into the track.
What sets BNX apart from competitors at this tier is the single-sided, one-piece frame technology. Instead of gluing two cardboard halves together, the frame is formed from a single sheet of recycled cardboard with a hot-rolled steel wire mesh laminated into the pleats. This prevents the center of the filter from sucking inward when the blower is running — a common failure mode in larger filters where surface area creates high static pull. The EPA-registered Houston facility (Registration # 101638-TX-1) also means every unit is domestically produced, which reduces shipping damage and ensures consistent pleat spacing.
Users with seasonal allergies report a noticeable reduction in symptoms within days of installation, and several long-term reviewers note less visible dust accumulation on furniture between filter changes. The four-pack aligns well with a 90-day replacement schedule, giving you a full year of coverage. The only trade-off is that a small number of users with older, undersized HVAC systems report a slight whistling sound when the AC runs — likely due to the filter’s high capture efficiency creating marginal airflow resistance at the upper edge of the system’s static pressure tolerance.
Why it’s great
- Electrostatic media captures 98% of particles without choking airflow
- Single-piece frame with wire backing prevents center collapse under suction
- Made in the USA with recycled materials and consistent quality control
Good to know
- Older, undersized HVAC units may produce a slight whistling sound during operation
- Actual dimensions are 15.68 x 24.68 — measure your slot before ordering
2. Filterbuy 16x20x1 Air Filter MERV 13 (4-Pack)
Filterbuy’s MERV 13 filter is engineered specifically for homes that need smoke and allergen defense without sacrificing HVAC efficiency. The synthetic media is electrostatically charged and features 16 pleats per foot — a pleat density that balances surface area for particle capture with unobstructed airflow channels. The actual dimensions of 15.50 x 19.50 x 0.75 inches are precisely cut for standard 16x20x1 return grilles, and the aluminum and polypropylene frame construction resists the warping that occurs when cardboard frames are exposed to attic heat or basement humidity.
The dual wire backing is the key structural detail here. Two layers of wire mesh support the pleats across their entire length, which prevents the filter from bowing inward when the blower pulls air through it. This is especially important for 16×20 filters installed in wall return grilles where the pressure differential can be significant. Filterbuy rates the filter for a 90-day service life, and the electrostatic charge remains active for the full duration — it doesn’t taper off after 30 days like some budget filters do. The max temperature tolerance of 200 degrees Fahrenheit and max velocity of 615 CFM mean it can handle furnace plenums without the frame delaminating.
Long-time buyers with multiple pets consistently report that these filters capture cooking odors, pet dander, and outdoor smoke particulates that lower MERV filters let right through. One caution: users with undersized air conditioners running 10–15 hours daily in hot climates may need to tape the edges to prevent the filter from being pulled out of the track — a fix that takes 30 seconds but indicates the filter is right at the edge of that system’s static pressure limit.
Why it’s great
- 16 pleats per foot with dual wire backing maintains shape under suction
- Electrostatic charge lasts the full 90-day service life without drop-off
- Aluminum/polypropylene frame resists warping in high heat or humidity
Good to know
- May require edge taping in older, undersized AC systems to prevent vacuum pull
- Actual size is 15.50 x 19.50 — verify your slot depth before purchasing
3. Simply 20x20x1 Air Filter MERV 13 (4-Pack)
The Simply 20x20x1 MERV 13 filter is built for the unique demands of large return grilles — the kind found in central hallways or at the base of staircases where surface area is high and static pressure can cause thinner filters to collapse. Its actual dimensions of 19.75 x 19.75 x 0.75 inches leave a small gap for installation tolerance, but the 24-point beverage board frame and hot-rolled steel wire mesh reinforcement ensure the filter holds its shape even under heavy suction loads from high-CFM blowers.
What makes this filter stand out in the mid-range tier is the pleat-heavy design relative to its frame size. More pleats per square foot means more surface area for particle capture without forcing air through a denser media. The CNK-coated beverage board resists moisture absorption — important for return grilles located near bathrooms, laundry rooms, or basements where humidity is higher. Several users who built Corsi-Rosenthal box fan filters with these units reported immediate TVOC drops measurable with air quality monitors, confirming the MERV 13 media is legitimately capturing sub-micron particles down to 0.3 microns.
One notable field observation: a reviewer who installed these in a 10×10 bathroom return duct found they reduced airflow enough to trigger a faulty state in their furnace, forcing them to switch to a lower MERV rating. Simply’s customer service responded by sending free replacement filters with lower MERV — a solid warranty response — but the incident highlights that these filters are best suited for systems designed to handle MERV 13 static pressure, not borderline or undersized blowers.
Why it’s great
- 24-point beverage board frame resists moisture and maintains seal integrity
- Wire-backed pleats prevent center collapse on large-format 20×20 grilles
- Proven particle capture effectiveness in third-party air quality monitor tests
Good to know
- Can restrict airflow enough to trigger furnace fault states in undersized systems
- Actual size is 19.75 x 19.75 — verify your return grill dimensions first

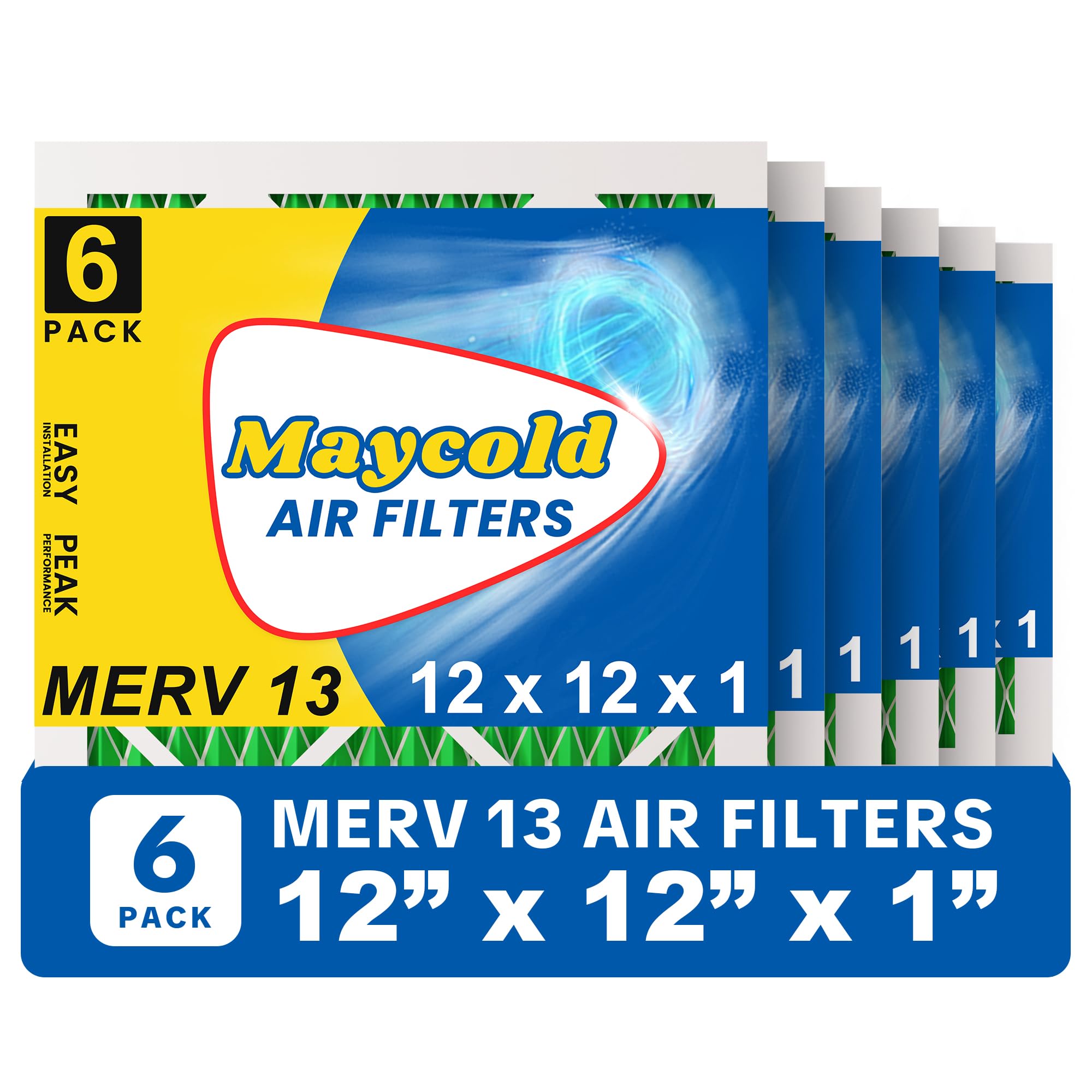

4. Maycold MERV 13 12x12x1 Air Filter (6-Pack)
The Maycold 12x12x1 filter solves a specific problem: finding MERV 13 filters that actually fit compact furnace slots without leaking air around the edges. The actual dimensions of 11.70 x 11.70 x 0.75 inches are tighter than the industry-standard 11.75-inch allowance, which means these filters create a firmer seal in the track — no rattling, no bypass air, no dust streaks on the frame after 30 days. The reduced width also means less risk of the filter bowing inward from the gap that normally exists between the filter and the slot wall.
Filters stored in a garage or basement before use absorb moisture and dust from the air, which clogs surface pores before the filter is even installed. The individual wrapping keeps the electrostatic media charged and free of debris until the moment you slide it into the slot. Users who previously struggled to find MERV 13 options for their 12x12x1 slots — a size common in older apartment HVAC units and secondary furnace return vents — consistently report that these filters fit where others either jammed or left gaps wide enough to see light through.
One reviewer noted that the filters feel about 1/8 inch thicker than standard ACE hardware MERV 13 filters, which suggests more pleated media surface area per filter. The trade-off is that the 11.70-inch actual width may be too tight for some slots that are already at the small end of tolerance — forcing the filter in can bend the frame corners. Measure your existing filter’s actual width before committing to a six-pack.
Why it’s great
- Actual 11.70-inch width creates a tighter seal than standard 11.75-inch filters
- Individual plastic wrapping preserves electrostatic charge and prevents pre-clogging
- Excellent fit for compact 12x12x1 slots that typically leak bypass air
Good to know
- 11.70-inch actual width may be too tight for slots at the small end of tolerance
- Frames can bend at corners if forced into a slot that’s already compressed
5. Chenzhit MERV 13 12x12x1 Air Filter (6-Pack)
The Chenzhit 12x12x1 six-pack is the entry-level option that makes MERV 13 filtration accessible for frequent swap schedules. The actual dimensions of 11.75 x 11.75 x 0.75 inches match the industry standard nominal size for 12x12x1 slots, so you get a drop-in fit without having to measure millimeter differences. The paper frame construction keeps the per-unit cost low, which matters if you’re changing filters every 30 days during peak allergy season or construction dust events rather than stretching to the full 90-day interval.
At this price point, the concessions are in the media and frame durability. The pleated paper material does not include the electrostatic charge that higher-tier filters use to boost capture efficiency without increasing density. That means the MERV 13 rating is achieved purely through mechanical filtration — tighter weaves that can increase static pressure drop compared to electrostatic options. Users report that the filters fit snugly, seal well in the intake, and noticeably reduce visible dust and allergy triggers when swapped regularly. One user with allergic children specifically noted improved indoor air quality and fewer dust-related reactions after switching to these.
The recommended service interval of 60–90 days is realistic for normal residential use, but the paper frame is more susceptible to humidity-related warping than beverage board or polypropylene alternatives. If your filter slot is in a crawlspace, unconditioned attic, or basement with high moisture, the frame may begin to sag within 45 days. Stick to the shorter end of the replacement window in humid climates, and you’ll get solid MERV 13 performance for a fraction of the premium-tier cost.
Why it’s great
- Standard actual size (11.75 x 11.75) ensures drop-in compatibility with most slots
- Low per-unit cost enables frequent 30-day swaps during peak allergy season
- Users report measurable improvements in dust reduction and allergy symptoms
Good to know
- Paper frame is prone to humidity-related warping in unconditioned spaces
- Media relies on mechanical density rather than electrostatic charge, increasing static pressure
FAQ
Will a MERV 13 air filter damage my HVAC system?
How often should I replace a MERV 13 filter?
Can I use a MERV 13 filter in a portable air purifier?
Final Thoughts: The Verdict
For most users, the best air filter merv 13 winner is the BNX TruFilter 16x25x1 because its electrostatic media captures 98% of particles without creating excessive static pressure, and the single-piece wire-backed frame maintains structural integrity for the full 90-day service interval. If you need a 16×20 size with proven smoke and odor defense, grab the Filterbuy 16x20x1. And for compact 12x12x1 furnace slots where bypass leakage is a problem, nothing beats the tight fit of the Maycold 12x12x1 six-pack.
