A float valve that dribbles, sticks open, or corrodes within a season turns a simple water-level task into a daily annoyance. Whether you are topping off a livestock trough, automating a pond, or fixing a toilet that never stops running, the core job of a float valve is absolute: shut off completely, every time, without failure. The difference between a valve that works and one that frustrates comes down to material integrity, thread precision, and lever-arm geometry — not marketing claims.
I’m Mohammad — the founder and writer behind ProteinJug. I have spent years dissecting the hardware specs and user failure reports on float valves across pressure-fed and gravity-fed systems, separating durable designs from components that leak from day one.
After reviewing thread compatibility, flow rates, and real-world shut-off reliability, I built this guide around the best float valve options that actually hold up to continuous submersion and variable water pressure without binding or leaking.
How To Choose The Best Float Valve
Buying the wrong float valve usually comes down to three overlooked variables: thread size, operating pressure range, and the material used for the valve body and lever arm. A plastic valve that works fine on a low-pressure rain barrel will crack or deform under 50 PSI mains pressure. Conversely, a brass valve designed for high pressure may never fully close in a gravity-fed system because the float cannot generate enough leverage. Here is what to match before you buy.
Thread Size and Inlet Connection
The single most common installation headache is a thread mismatch. Float valves typically come in 1/2-inch NPT, 3/4-inch NPT, or 3/4-inch garden hose thread (GHT). A 1/2-inch NPT valve will not thread into a 3/4-inch garden hose coupler without an adapter. Before purchasing, verify the inlet connection type on your tank, pipe, or fill line. If you are replacing an existing valve, measure the thread diameter and pitch — many returns happen because “it looked like the right size.”
Operating Pressure and Flow Rate
Float valves are mechanical devices that rely on buoyancy to shut off flow. High-flow valves (like the Little Giant Trough-O-Matic, which moves 245 GPH) require a minimum pressure of 20 PSI to seal properly. At lower pressures, the float may not generate sufficient upward force to compress the internal seal, causing a slow drip that never stops. For gravity-fed systems using a header tank or rain barrel, choose a valve with a low closing pressure rating and a large float ball to increase leverage.
Material Durability in Wet Environments
Continuous submersion in livestock troughs, ponds, or hard-water areas accelerates corrosion and UV degradation. ABS plastic is lightweight and cheap but becomes brittle after 12-18 months of direct sunlight and can warp in hot water. Metal valves — brass or bronze — resist mineral buildup and maintain dimensional stability over decades. However, metal valves cost more and may react galvanically with aluminum tanks or copper piping if a dielectric union is not used.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Little Giant Trough-O-Matic | Premium | High-flow stock tanks & ponds | 245 GPH flow at 20-50 PSI | Amazon |
| Mueller Industries 109-814 | Premium | Long-term outdoor & hard water | Bronze body, 3/4-inch inlet | Amazon |
| Fluidmaster PerforMAX Kit | Mid-Range | Toilet repair with 3-inch flush valve | Adjustable flow, 7-year warranty | Amazon |
| Korky QuietFILL 528X | Mid-Range | Quiet universal toilet replacement | Tool-free height adjustment | Amazon |
| Blulu 3-Pack Float Valve | Budget | Multi-point low-pressure setups | ABS body, 1/2-inch NPT thread | Amazon |
In‑Depth Reviews
1. Little Giant Trough-O-Matic
The Little Giant Trough-O-Matic is the benchmark for high-volume automatic fill applications. Its polystyrene housing resists UV degradation and impact better than ABS, and the float valve assembly flows up to 245 gallons per hour at typical well-pump pressure (20-50 PSI). The included expansion brackets allow you to mount the valve securely to both plastic and metal stock tanks without drilling extra holes. Real-world users report 15-year service life in hard-water livestock conditions, which is exceptional for a non-metallic valve at this tier.
The main drawback is a tendency to spray upward during the initial fill burst if the discharge angle is not aimed below the water surface. This is a function of the high flow rate rather than a design defect, and you can mitigate it by aiming the outlet downward or using a short length of hose as a drop tube. The valve requires at least 20 PSI to seat the float properly — it is not suitable for low-pressure gravity feed systems under 5 PSI.
For anyone automating a horse trough, koi pond, or large tank where water demand is high and reliability over years matters, this valve delivers the fastest fill rate in the category. The plastic body keeps weight low and eliminates corrosion concerns, though hard-water mineral deposits may still form on the float ball and require periodic cleaning.
Why it’s great
- Fast 245 GPH fill rate reduces wait time for large tanks
- Durable polystyrene housing resists UV and impact damage
- Expansion brackets provide secure mounting to various tank styles
Good to know
- Plastic valve body may crack if frozen solid with water inside
- Not designed for low-pressure gravity systems below 20 PSI
2. Mueller Industries 109-814 Float Valve
The Mueller Industries 109-814 is the premium metal float valve for those who need decades of service in outdoor, high-mineral, or continuous-flow environments. Machined from bronze with a high-tensile serrated arm, this valve handles both mains pressure and low-pressure gravity feed remarkably well. The dual inlet thread design allows either pipe connection or locknut mounting, giving you flexibility when installing into a tank wall. Users running low-flow gravity systems (1-2 GPM) report reliable shut-off, which is unusual for a valve of this thread size.
One nuance: the float arm is designed for a separate float ball and rod assembly. You need to purchase the float ball and rod separately, which adds cost and an extra trip to the hardware store. The bronze finish also means this valve is heavier than plastic equivalents and will not be the cheapest option upfront, but owners who have replaced plastic valves yearly find the metal construction pays for itself within three seasons.
In pond top-off or livestock applications where the valve is submerged continuously, the brass/bronze construction resists dezincification and mineral crusting far better than stainless steel or ABS. The flow does slow to a trickle as the float approaches the closed position, which helps prevent water hammer in long pipe runs.
Why it’s great
- Bronze body resists corrosion and mineral buildup better than plastic or steel
- Dual inlet thread allows locknut mounting for tank-wall installations
- Works reliably on very low gravity-fed pressure (1-2 GPM)
Good to know
- Float ball and rod must be purchased separately
- Heavier than plastic valves, requiring sturdy tank-wall support
3. Fluidmaster PerforMAX Kit
The Fluidmaster PerforMAX is not just a float valve — it is a complete toilet repair kit that includes a 3-inch flapper and a fully adjustable fill valve designed for high-efficiency (HET) toilets with 3-inch flush valve openings. The fill valve allows you to adjust the water flow rate, which is critical for preventing overflow in low-capacity tanks. The 7-year limited manufacturer warranty backs the plastic construction, and the straightforward 10-minute install saves the typical plumber call-out fee.
Where this kit shines is compatibility: it fits the vast majority of American-standard and Toto toilets that use a 3-inch flush valve. The included flapper seals more smoothly than the Korky equivalent, according to user feedback, and the fill valve’s threaded connector eliminates the rocking instability seen on some universal push-fit designs. However, if your toilet uses a 2-inch flush valve, the included flapper will not fit, and you will need to buy a separate flapper.
The fill valve itself is quieter than older Fluidmaster models and includes a bottom-entry water supply connection, which simplifies the install. For anyone whose toilet has a running or slow-fill issue and uses a 3-inch flush valve, this kit is the fastest path to a silent, leak-free tank.
Why it’s great
- Includes fill valve and 3-inch flapper for a complete toilet repair
- Adjustable water flow rate prevents overflow in modern HET toilets
- 7-year limited warranty offers long-term peace of mind
Good to know
- 3-inch flapper is not compatible with older 2-inch flush valve toilets
- Plastic fill valve may not last as long as a brass toilet shank valve
4. Korky QuietFILL 528X
The Korky QuietFILL 528X is engineered specifically for quiet operation in modern residential toilets. Its universal design claims to fit 99% of toilets on the market, and the tool-free twist-lock height adjustment makes installation straightforward even for a first-timer. The valve includes a unique delayed refill feature that pauses the bowl refill for a few seconds after the flush, allowing the user to spot a leak before the bowl refills — a smart diagnostic tool that no other valve in this roundup offers.
Construction quality is sturdy: the plastic and rubber compound feels denser than typical commodity toilet valves, and the metal refill tube clip prevents the refill tube from slipping off. The 15-minute install time reported by users is realistic, though the printed instructions are sparse — most owners recommend watching Korky’s YouTube installation video to avoid missing the click-lock alignment step. A small subset of users report that this valve is slightly louder at the start of the fill cycle than the previous Korky model, but still quieter than most Fluidmaster valves.
For homeowners who value a nearly silent fill cycle and want the leak-detection convenience of the delayed refill feature, the QuietFILL 528X is the best dedicated toilet float valve available. It does not include a flapper, so you will need to buy one separately if your old flapper is worn.
Why it’s great
- Delayed refill feature helps detect leaking flappers before water refills
- Tool-free height adjustment fits nearly any toilet tank depth
- Very quiet operation compared to standard toilet fill valves
Good to know
- Instructions lack detail for first-time installers
- Does not include a flapper — you need to buy separately

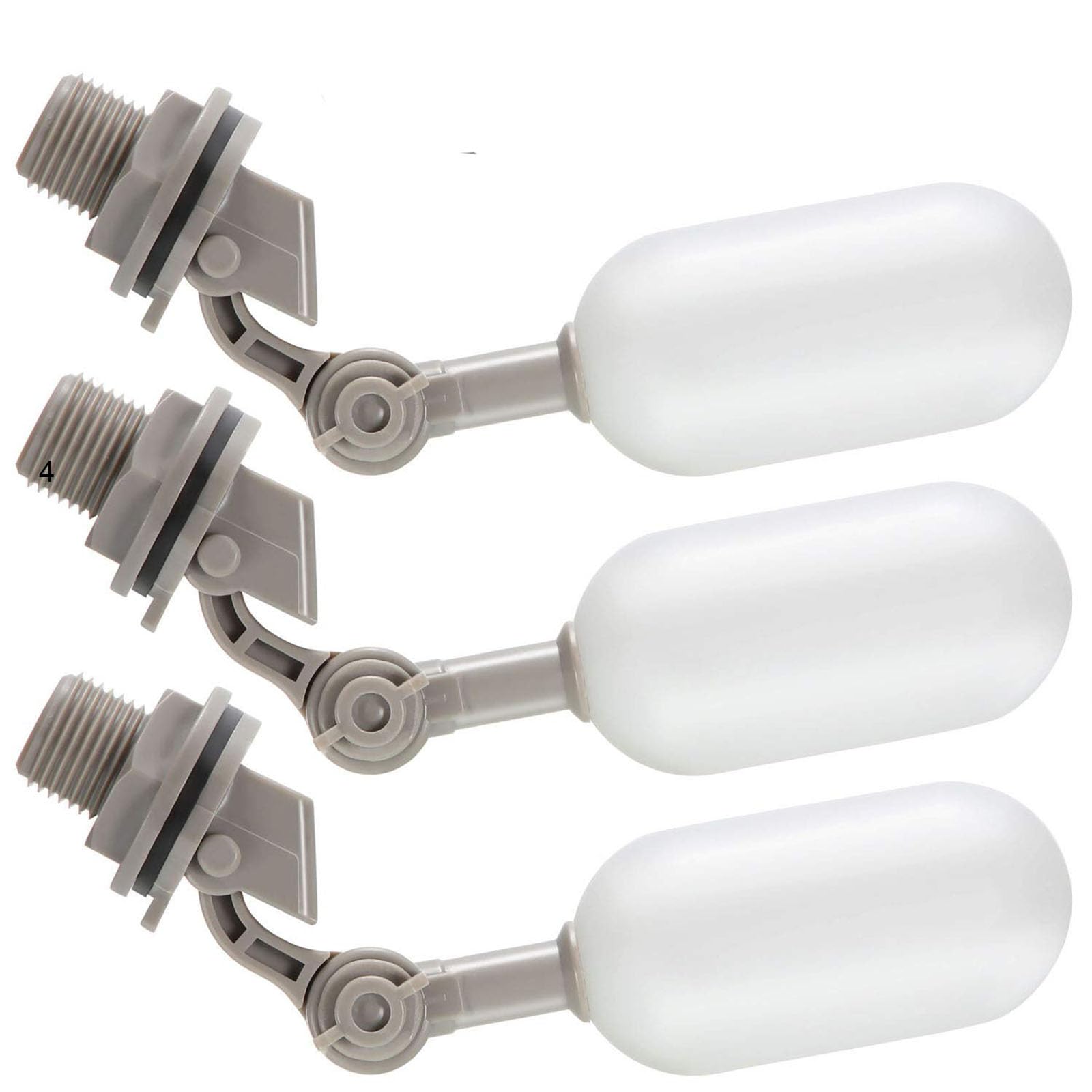

5. Blulu 3-Pack Float Valve
The Blulu 3-Pack offers the lowest per-unit cost in this roundup, making it the natural choice for anyone needing to equip multiple chicken waterers, small aquariums, or hydroponic reservoirs simultaneously. The adjustable arm rotates over 180 degrees, allowing you to set the shut-off water level precisely without tools. Each valve uses a 1/2-inch NPT thread and comes with a gasket to prevent leaks at the connection point.
Operationally, this valve is designed primarily for low-pressure gravity systems. The internal orifice is smaller than the high-flow Little Giant valve, so it fills slowly — that is intentional for maintaining a steady level rather than topping off a large tank quickly. Multiple user reviews confirm that the thread size description can be confusing: while the inlet is 1/2-inch NPT, the float connection requires a 3/4-inch garden hose thread, meaning you will need an adapter to connect a standard garden hose directly. This is the most common source of frustration for first-time buyers.
The ABS plastic body is lightweight and functional in protected indoor or shaded outdoor applications, but it will become brittle after 12-18 months of direct sun exposure. For covered chicken coops, indoor aquariums, or basement hydroponic setups where UV is not a factor, the Blulu delivers reliable shut-off at an unbeatable price per valve.
Why it’s great
- Three valves per pack provide excellent value for multi-point installations
- 180-degree adjustable arm allows precise water-level customization
- Works well on low-pressure gravity systems with no electricity required
Good to know
- ABS plastic becomes brittle after prolonged UV exposure
- Thread adapter needed for standard garden hose connections
FAQ
Why does my float valve keep dripping after the tank is full?
Can I use a brass float valve in a plastic tank?
Final Thoughts: The Verdict
For most users, the best float valve winner is the Little Giant Trough-O-Matic because it combines the fastest 245 GPH fill rate with the best long-term durability in a lightweight, corrosion-free polystyrene body. If you want a bronze valve that will outlast any plastic model and still works reliably on low-pressure gravity systems, grab the Mueller Industries 109-814. And for a budget-friendly multi-point setup in indoor or shaded applications, nothing beats the per-unit value of the Blulu 3-Pack.
